Throttling Policy¶

Overview¶

The Yappes Throttling Policy allows you to control and limit the rate of API requests at the subscription level so you can protect your backend services from overload while ensuring fair usage across all consumers.

This powerful gateway policy feature enables administrators to set precise limits on the number of API requests that can be made within specified time windows, providing essential traffic management capabilities for your API ecosystem. As a subscription-level gateway policy, throttling integrates seamlessly into your existing Yappes API management workflow.

By implementing throttling policies, you can prevent API abuse, maintain consistent performance during peak usage periods, and differentiate service levels across different consumer tiers. This feature is particularly valuable when you need to enforce usage quotas, implement fair-use policies, or protect your infrastructure from potential denial-of-service scenarios.

The throttling implementation process involves two main phases:
1. Creating the policy through the Gateway Policies interface
2. Attaching it to specific subscriptions via the Manage Subscriptions page

This separation of policy creation and attachment provides maximum flexibility, allowing you to create reusable throttling configurations that can be applied across multiple subscriptions while maintaining centralized policy management.

Prerequisites¶

Before implementing the Throttling feature, ensure you have:

Administrative access to the Yappes API Management platform
Gateway Policy permissions to create and manage policies at the subscription level
Subscription management access to attach policies to consumer subscriptions
Understanding of your API usage patterns to set appropriate throttling limits
Knowledge of consumer requirements to ensure throttling limits align with business needs

Custom error and message

For error scenarios, you can override the default HTTP status code, error code, and message. See Custom Error and Message.

Step-by-Step Implementation¶

Step 1: Navigate to Gateway Policies¶

Locate Gateway Control → Gateway Policies in the main navigation menu
The policies management interface will display

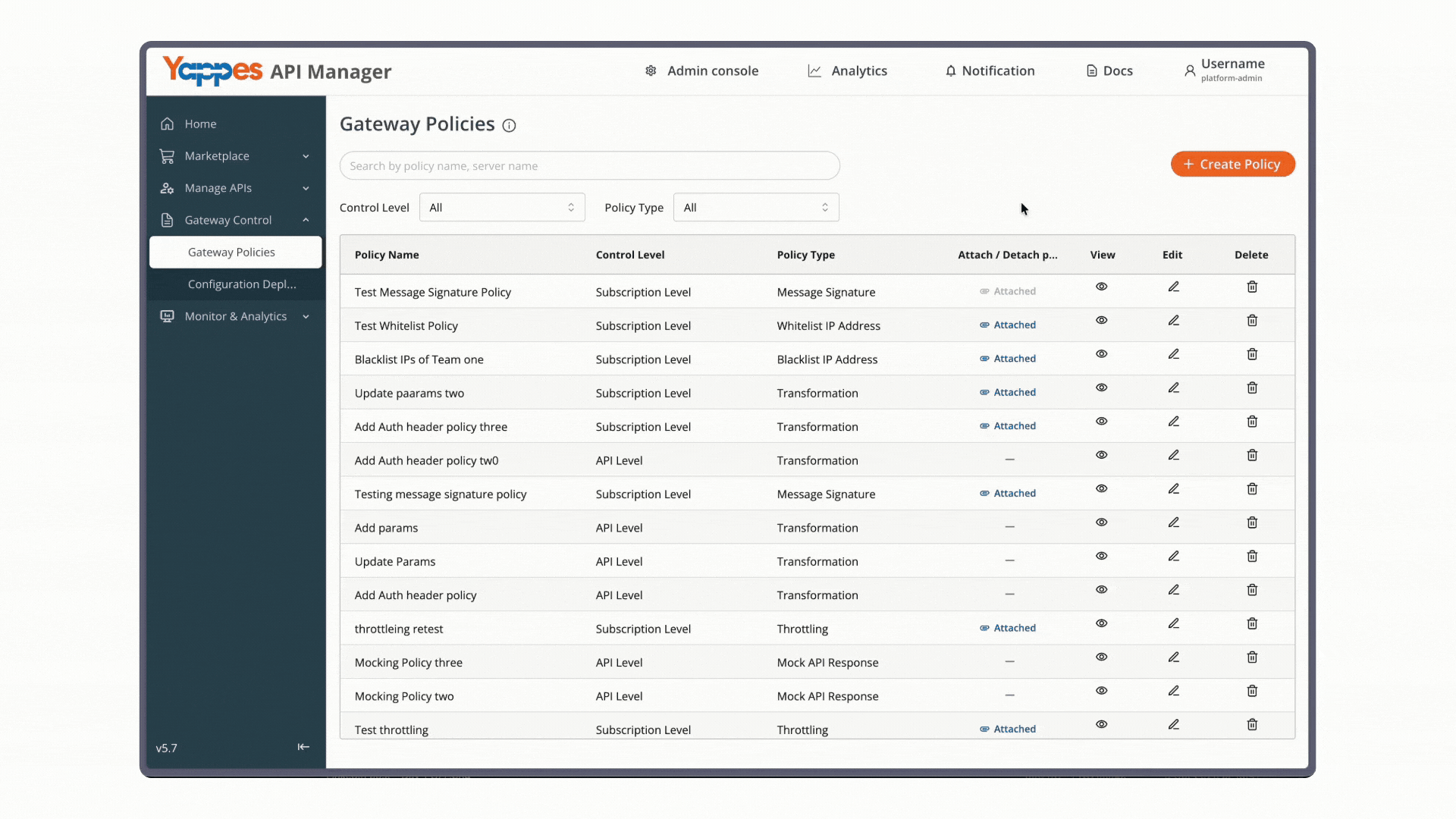

Step 2: Create a New Throttling Policy¶

Click Create policy from the gateway page
Set the Control Level to Subscription Level
In the Policy Type dropdown, select Throttling

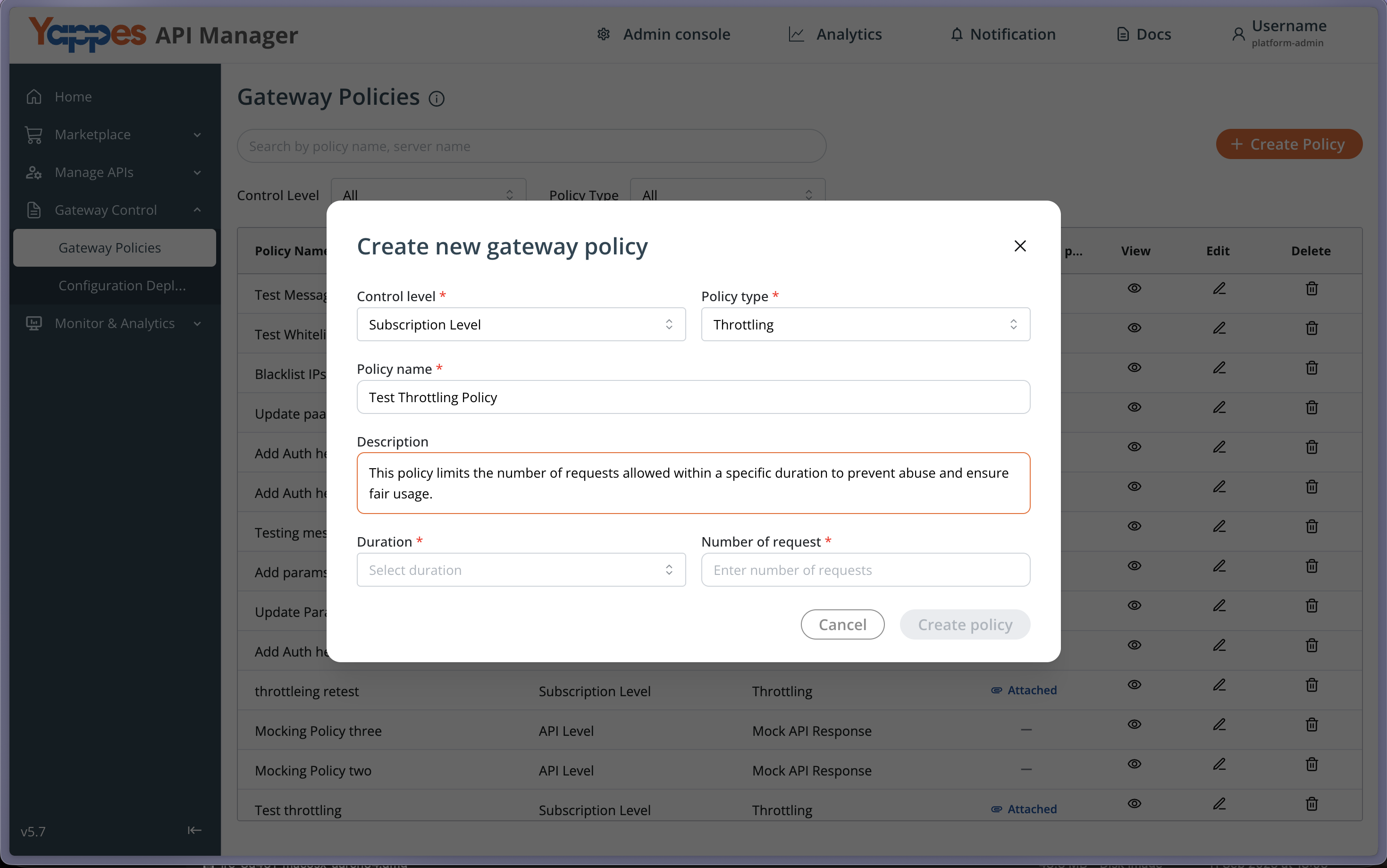

Step 3: Set the Policy Name¶

Enter a descriptive name in the Policy Name* field (e.g., throttling_1)
Add a detailed description in the text area field to document the policy purpose

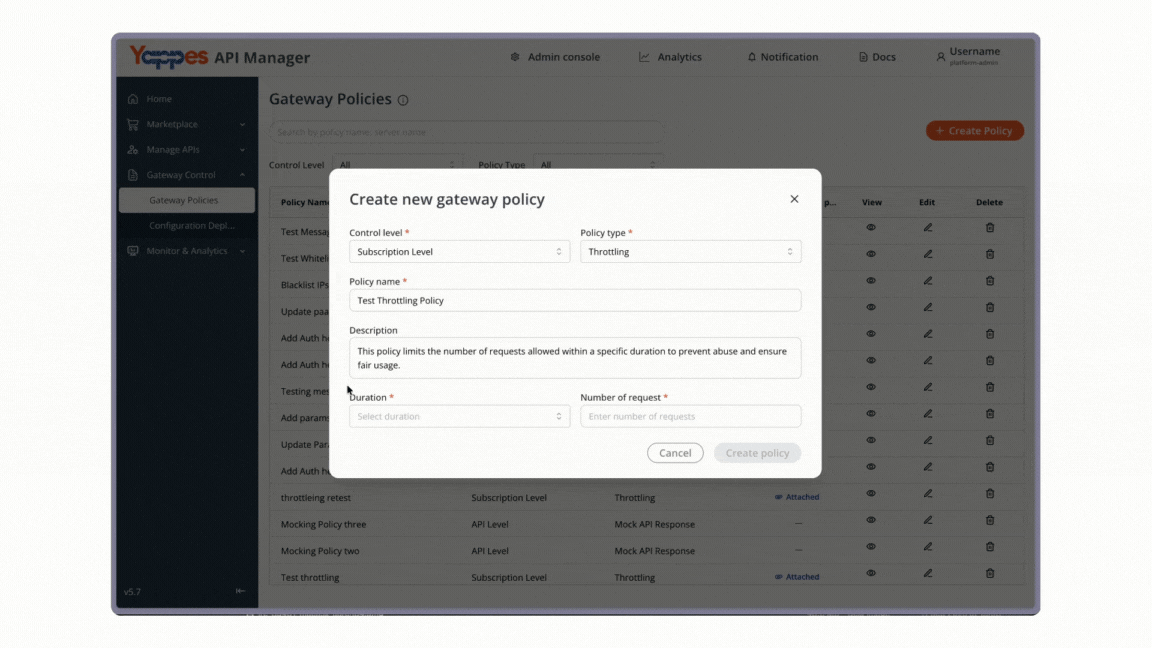

Step 4: Configure Throttling Parameters¶

Complete the throttling policy configuration form with the following fields:

Duration* : Select the time window for throttling.
- Options typically include: 1 minute, 1 hour, 1 day
Number of Requests* : Enter the maximum requests allowed.
- Example: 1000

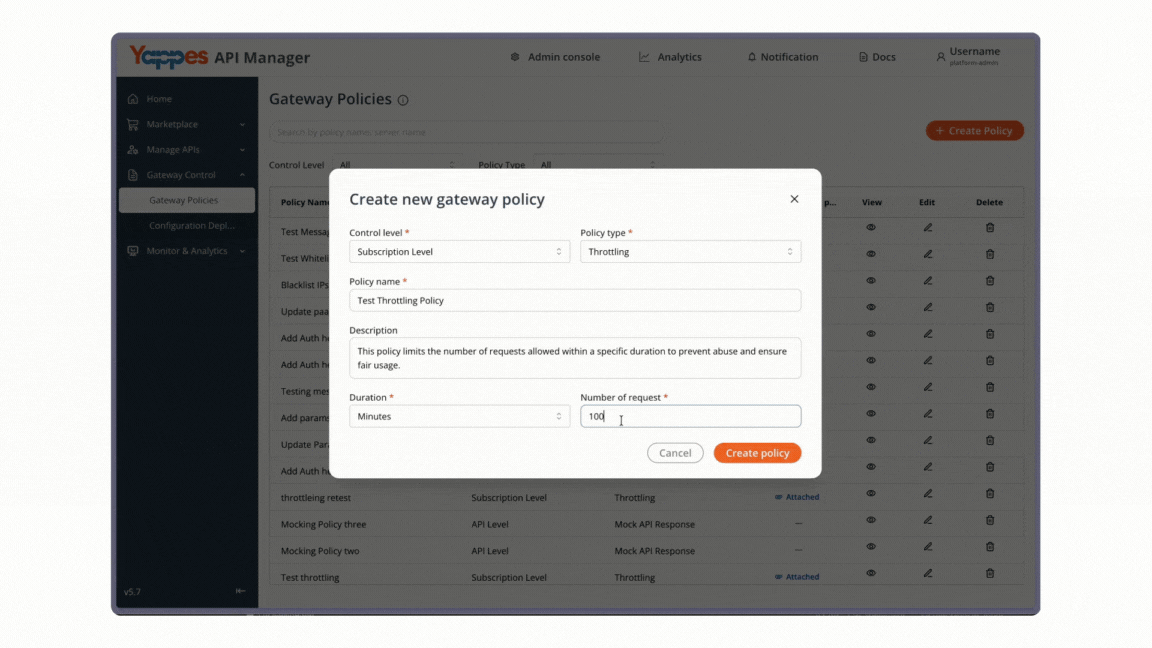

Step 5 : Save the Throttling Policy¶

Review all entered information for accuracy
Click the Create Policy button to create the policy
Wait for the confirmation message

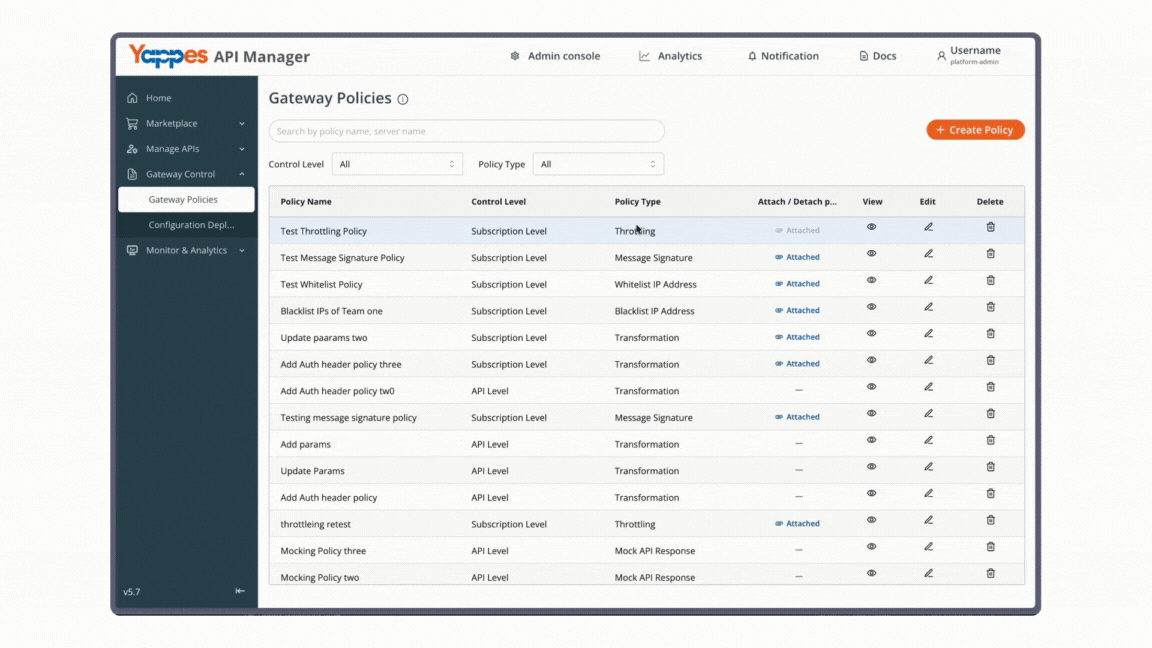

Step 6: Navigate to Manage Subscriptions¶

From the main navigation menu, click on Manage Subscriptions
The Manage Subscriptions page will display a list of all API subscriptions
Locate the subscription(s) where you want to apply the throttling policy

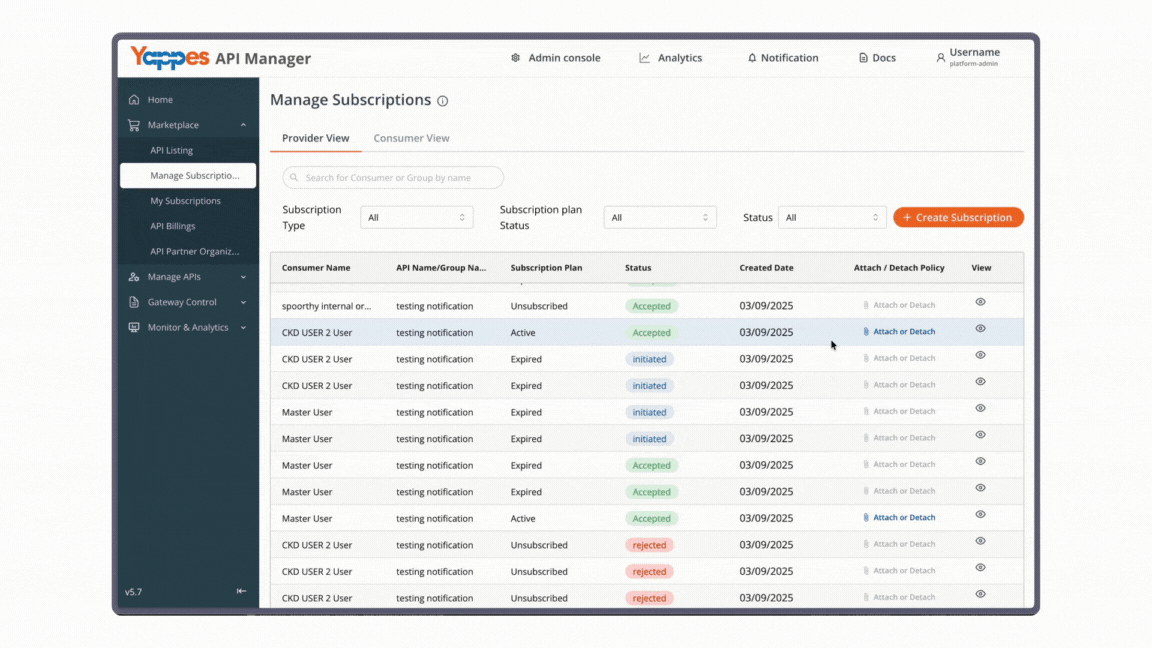

Step 7: Attach the Policy to Subscriptions¶

Click the Attach or Detach button for the relevant subscription
The policy attachment dialog will open

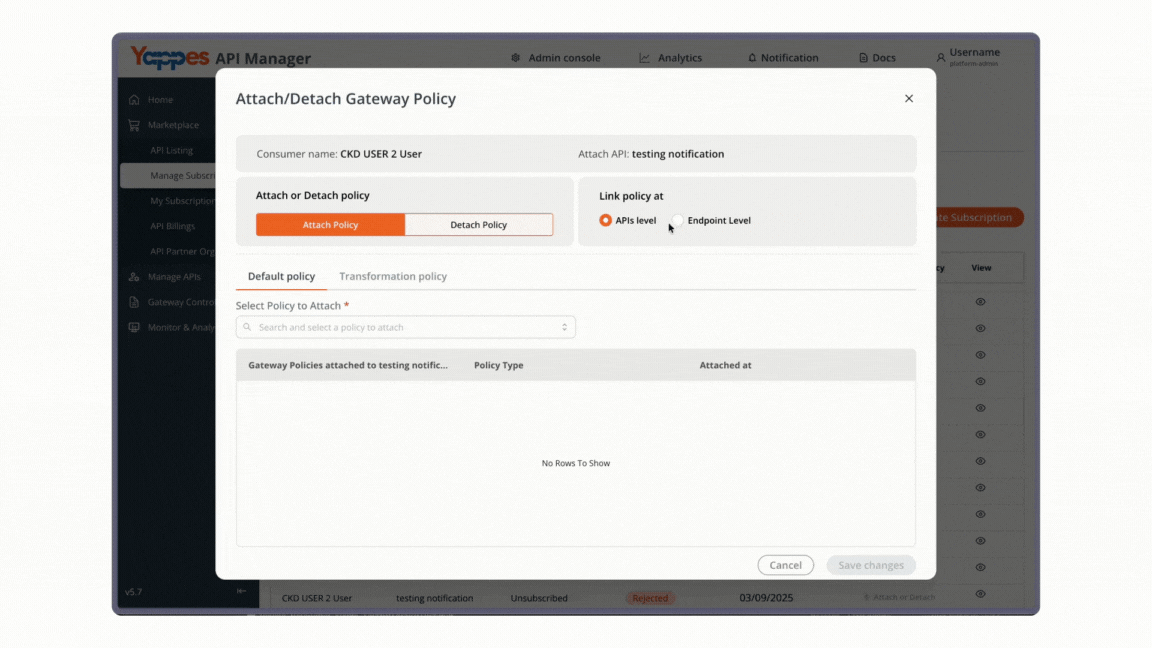

Step 8: Attach Policy to API or Endpoint¶

In the Select Policy to Attach dropdown field, choose your newly created throttling policy (e.g., throttling_1)
Choose the attachment level:
- API Level: Applies throttling to all endpoints of an API
- Endpoint Level: Applies throttling to specific endpoints only
Click the Attach Policy button next to your selection

Step 9: Verify Policy Attachment¶

Confirm that the policy appears in the attached policies list for the subscription

Understanding the Interface¶

Key Form Fields¶

Control Level*: Required field that must be set to "Subscription Level" for throttling policies
Policy Name*: Required unique identifier for your policy
Policy Type*: Determines the functionality – select "Throttling"
Description: Optional field for documenting the policy purpose
Duration*: Time window for counting (common options: minute, hour, day)
Number of Requests*: Maximum allowed requests (integer value based on requirements)

Subscription Management Interface¶

The Manage Subscriptions section provides:

List of all active API subscriptions
Consumer/organization information
API names and subscriptions
Attach/Detach functionality for policy management

Configuration and Settings¶

Recommended Throttling Configurations¶

Best Practice: Start with conservative limits and adjust based on actual usage patterns.

Development Environment¶

Duration: 1 minute
Requests: 50
Purpose: Prevent runaway test scripts

Production - Basic Tier¶

Duration: 1 hour
Requests: 1,000
Purpose: Standard API access for basic users

Production - Premium Tier¶

Duration: 1 hour
Requests: 10,000
Purpose: Enhanced access for premium subscribers

Key Configuration Considerations¶

Duration Selection Impact¶

Shorter durations (e.g., 1 minute) provide more granular control but may impact legitimate burst usage
Longer durations (e.g., 1 day) allow for usage flexibility but provide less immediate protection

Request Limit Calculation¶

Consider average request size and processing time
Factor in peak usage periods
Allow headroom for legitimate usage spikes

Attachment Level Strategy¶

API Level: Use when all endpoints share similar resource requirements
Endpoint Level: Use for endpoints with specific performance characteristics

Verification and Testing¶

Confirming Policy Creation¶

Navigate to the Gateway Policies page
Verify your policy appears in the list with the correct type: Throttling
Check that policy details match your configuration

Testing Throttling Enforcement¶

Make API requests using the affected subscription credentials
Monitor request count as it approaches the configured limit
Verify throttling response when the limit is exceeded:

{
  "error": "Rate limit exceeded",
  "retry_after": 3600
}

Confirm request access resets after the duration period expires

Monitoring Checklist¶

Policy appears in the Gateway Policies list
Policy is attached to the correct subscriptions
API requests are counted correctly
Throttling activates at the configured limit
Request counter resets after the duration period
Error messages are returned appropriately

Troubleshooting¶

Common Issues and Solutions¶

Issue: Throttling policy not enforcing limits
Solution:

Verify policy is attached at the correct level (API vs Endpoint)
Check Control Level is set to Subscription Level
Confirm policy was saved successfully after creation
Allow 2–5 minutes for policy propagation

Issue: Requests blocked below configured limit
Solution:

Review Duration setting – may be shorter than expected
Check if multiple policies are attached
Verify request counting methodology matches expectations

Issue: Cannot create throttling policy
Solution:

Ensure Subscription Level is selected for Control Level
Verify all required fields are populated
Check for special characters in the policy name
Confirm you have necessary permissions

Issue: Policy not appearing in attachment list
Solution:

Return to Gateway Policies and confirm policy exists
Verify policy type is Throttling
Check policy control level matches subscription requirements
Refresh the Manage Subscriptions page

Error Messages¶

Error Message	Cause	Resolution
`"Policy creation failed"`	Missing required fields	Complete all mandatory fields
`"Invalid duration"`	Unsupported time window	Select from available options
`"Policy not found"`	Policy deleted or not saved	Recreate policy and save
`"Attachment failed"`	Permission or system issue	Check permissions and retry

Pro Tip

Start with slightly higher throttling limits than your expected peak usage. This prevents false positives while still giving you room to tighten limits once you establish accurate traffic baselines.
