Schema Validation¶

Overview¶

Schema Validation in Yappes enforces strict JSON and XML request payload structures at the API Gateway before requests are forwarded to backend services.

This feature helps organizations to:

Prevent malformed or malicious payloads
Enforce API contracts consistently
Eliminate schema drift across integrations
Improve backend reliability and data quality

Schema Validation aligns with industry standards such as JSON Schema, XML Schema Definition (XSD), and OWASP API Security best practices.

When to Use Schema Validation¶

Use Schema Validation when:

APIs require a well-defined request payload structure
Payload formats and data types must be strictly enforced
Backend systems must be protected from invalid or unexpected data
Multiple consumers integrate with the same API
Compliance or governance requirements mandate contract enforcement

When Not to Use Schema Validation¶

Avoid using Schema Validation in the following scenarios:

APIs accept highly dynamic or free-form payloads
Payload structure varies significantly across consumers
Schemas are not finalized during early development or prototyping

Info

For lightweight validation, consider using Verify Headers policies instead.

Prerequisites¶

Before configuring Schema Validation policies, ensure the following requirements are met.

Required Access and Permissions¶

Common Requirements¶

Active Yappes platform account.
API Manager access.
Permission to create and manage Gateway Policies.

System Requirements¶

Supported web browser: Chrome, Edge, or Firefox.

Schema Ruleset Configuration¶

This section explains how to define validation rules within the schema editor.

Ruleset Concept¶

A ruleset is a map of field names to validation rules.

Each rule must define: - type – Data type of the field - isMandatory – Whether the field is required

Optional constraints depend on the rule type.

Supported Rule Types¶

string
number
boolean
object
array

String Ruleset¶

Used to validate string values with optional length and pattern constraints.

Supported Properties

Property	Required / Optional	Description	What can be entered	Example
`type`	Required	Defines the data type	Must be `"string"`	`"string"`
`isMandatory`	Required	Indicates whether the field is mandatory	`true` or `false`	`true`
`min`	Optional	Minimum allowed string length	Integer ≥ 0	`3`
`max`	Optional	Maximum allowed string length	Integer ≥ 0	`20`
`regex`	Optional	Regular expression to validate string format	Valid regex pattern	`"^[a-zA-Z0-9_]+$"`
`description`	Optional	Human-readable description of the field	Any string	`"Unique username"`

Example

{
  "username": {
    "type": "string",
    "isMandatory": true,
    "min": 3,
    "max": 20,
    "regex": "^[a-zA-Z0-9_]+$"
  }
}

Number Ruleset¶

The Number ruleset is used to validate numeric values in request payload. It supports optional range constraints to ensure numeric values fall within acceptable limits.

Supported Properties

Property	Required / Optional	Description	What can be entered	Example
`type`	Required	Defines the data type	Must be `"number"`	`"number"`
`isMandatory`	Required	Indicates whether the field is mandatory	`true` or `false`	`true`
`min`	Optional	Minimum allowed numeric value	Any valid number	`18`
`max`	Optional	Maximum allowed numeric value	Any valid number	`65`
`description`	Optional	Human-readable description of the field	Any string	`"User age in years"`

Example

{
  "age": {
    "type": "number",
    "isMandatory": true,
    "min": 18,
    "max": 65,
    "description": "User age in years"
  }
}

Boolean Ruleset¶

The Boolean ruleset is used to validate boolean values (true or false) in request payload. Boolean rules are intentionally simple and do not support range, length, or pattern-based constraints.

Supported Properties

Property	Required / Optional	Description	What can be entered	Example
`type`	Required	Defines the data type	Must be `"boolean"`	`"boolean"`
`isMandatory`	Required	Indicates whether the field is mandatory	`true` or `false`	`true`
`description`	Optional	Human-readable description of the field	Any string	`"Indicates whether the user is active"`

Example

{
  "isActive": {
    "type": "boolean",
    "isMandatory": true,
    "description": "Indicates whether the user is active"
  }
}

Object Ruleset¶

The Object ruleset is used to validate structured JSON objects in request payload. It supports nested and recursive validation by defining validation rules for object properties using child rulesets.

Supported Properties

Property	Required / Optional	Description	What can be entered	Example
`type`	Required	Defines the data type	Must be `"object"`	`"object"`
`isMandatory`	Required	Indicates whether the field is mandatory	`true` or `false`	`true`
`properties`	Required	Defines validation rules for object fields	A valid ruleset object	`{ "id": { "type": "number", "isMandatory": true } }`
`description`	Optional	Human-readable description of the field	Any string	`"User root object"`

Example

{
  "user": {
    "type": "object",
    "isMandatory": true,
    "description": "User root object",
    "properties": {
      "id": {
        "type": "number",
        "isMandatory": true
      },
      "name": {
        "type": "string",
        "isMandatory": true
      },
      "emailVerified": {
        "type": "boolean",
        "isMandatory": false
      }
    }
  }
}

Array Ruleset¶

The Array ruleset is used to validate array values in request payload.

Each array defines validation rules for its elements using the items property.
Arrays support recursive validation and can contain primitive values, objects, or nested arrays.

Supported Properties

Property	Required / Optional	Description	What can be entered	Example
`type`	Required	Defines the data type	Must be `"array"`	`"array"`
`isMandatory`	Required	Indicates whether the field is mandatory	`true` or `false`	`true`
`items`	Required	Defines validation rules for array elements	A valid single rule definition	`{ "type": "string", "isMandatory": true }`
`description`	Optional	Human-readable description of the field	Any string	`"List of user roles"`

Example

{
  "users": {
    "type": "array",
    "isMandatory": true,
    "description": "List of users",
    "items": {
      "type": "object",
      "isMandatory": true,
      "properties": {
        "id": { "type": "number", "isMandatory": true },
        "name": { "type": "string", "isMandatory": true },
        "isActive": { "type": "boolean", "isMandatory": true }
      }
    }
  }
}

Custom error and message

For error scenarios, you can override the default HTTP status code, error code, and message. See Custom Error and Message.

Step-by-Step Implementation¶

Method 1: Creating Schema Validation During API Onboarding¶

Step 1: Navigate to API Manager¶

Click on Manage APIs in the main dashboard.
Select My APIs from the submenu.

Step 2: Initiate API Onboarding¶

Follow onboarding steps.

Step 3: Select Endpoint for attaching Schema Validation¶

Click on your newly created endpoint (e.g., Update Profile).
The endpoint details panel will open.

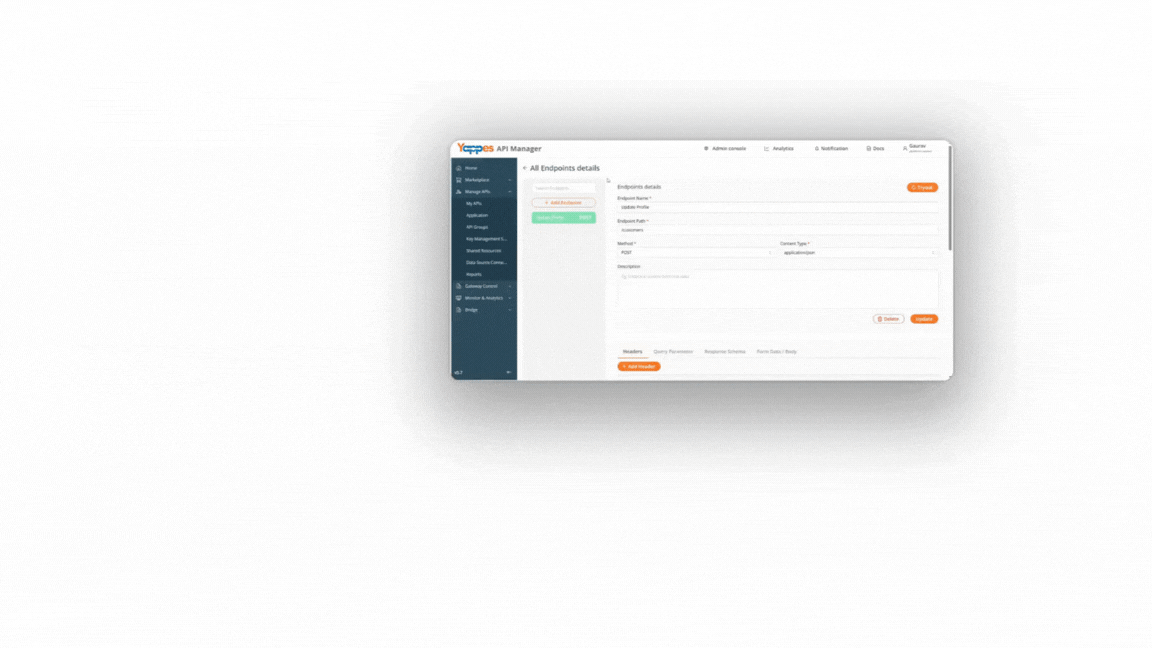

Step 4: Access Schema Validation Policy¶

Click Create Schema Validation to open the policy configuration panel.
The Schema Validation dialog will appear.

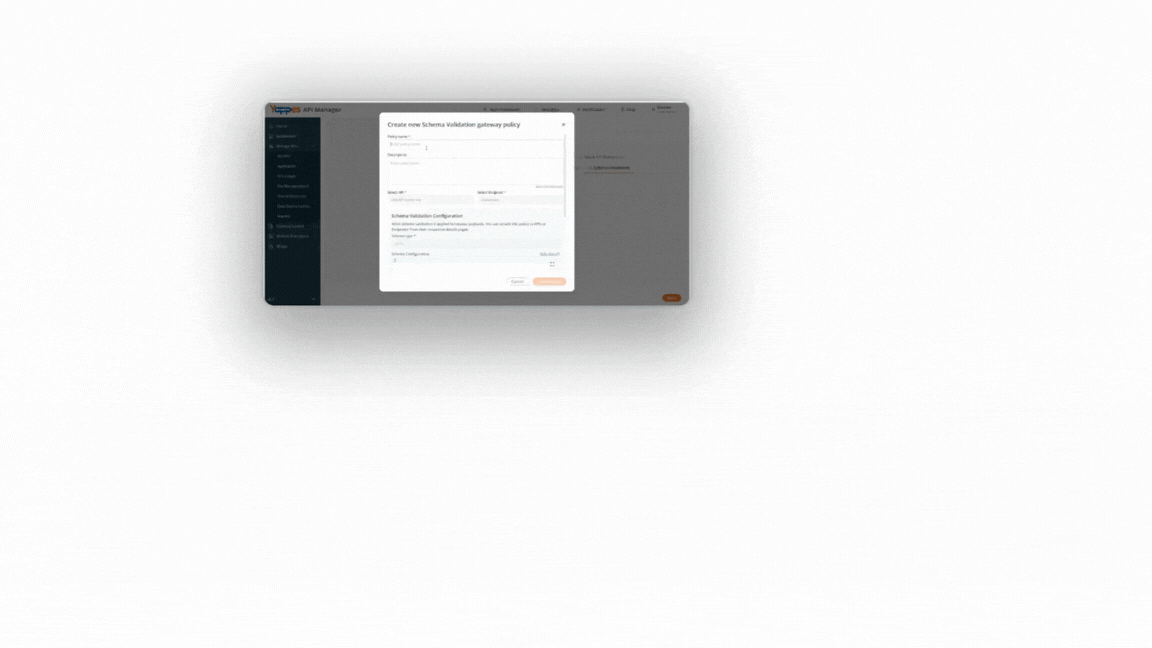

Step 5: Create the Schema Validation Policy¶

Enter a descriptive name in the Policy Name field (e.g., Customer_Request_Schema_Validation).
Add a detailed description in the Enter description field to document the policy purpose.

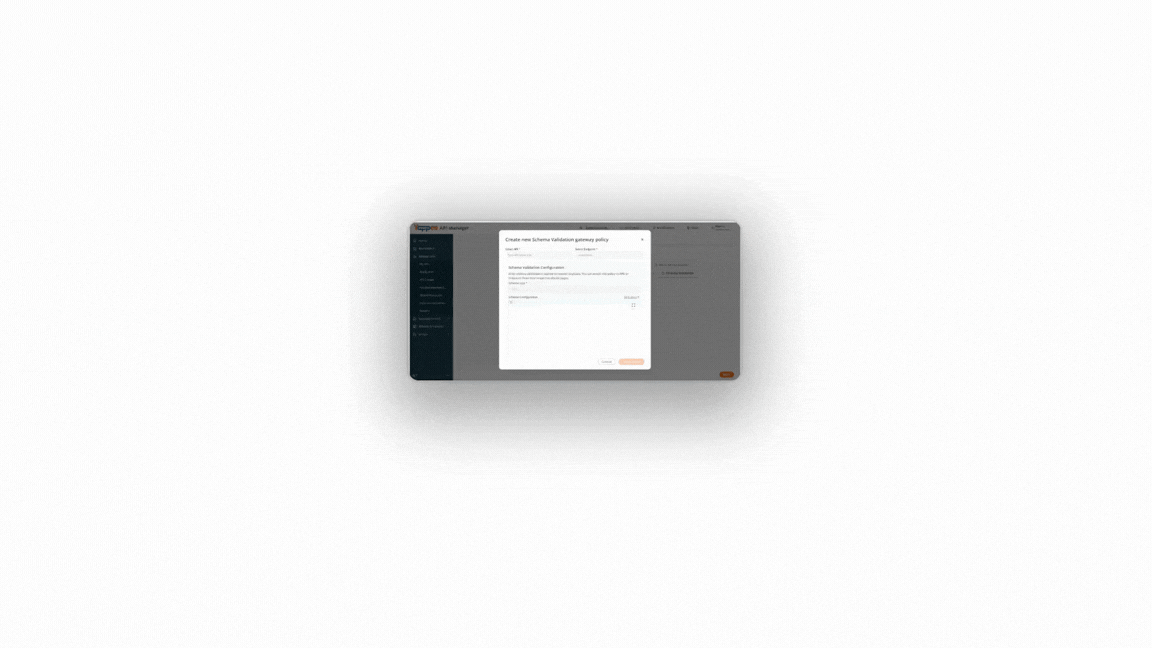

Step 6: Configure Schema Definition¶

The Schema Type field is disabled by default and set to JSON.
Define the schema content directly in the Schema Configuration editor.

Note

You may click the Expand icon to open the editor in full-screen mode for better visibility.
If expanded, click Save and Close to save the schema and return to the policy window.
If configured directly in the modal, the schema is saved automatically.

Refer to the Schema Ruleset Configuration section for supported rule types and examples.

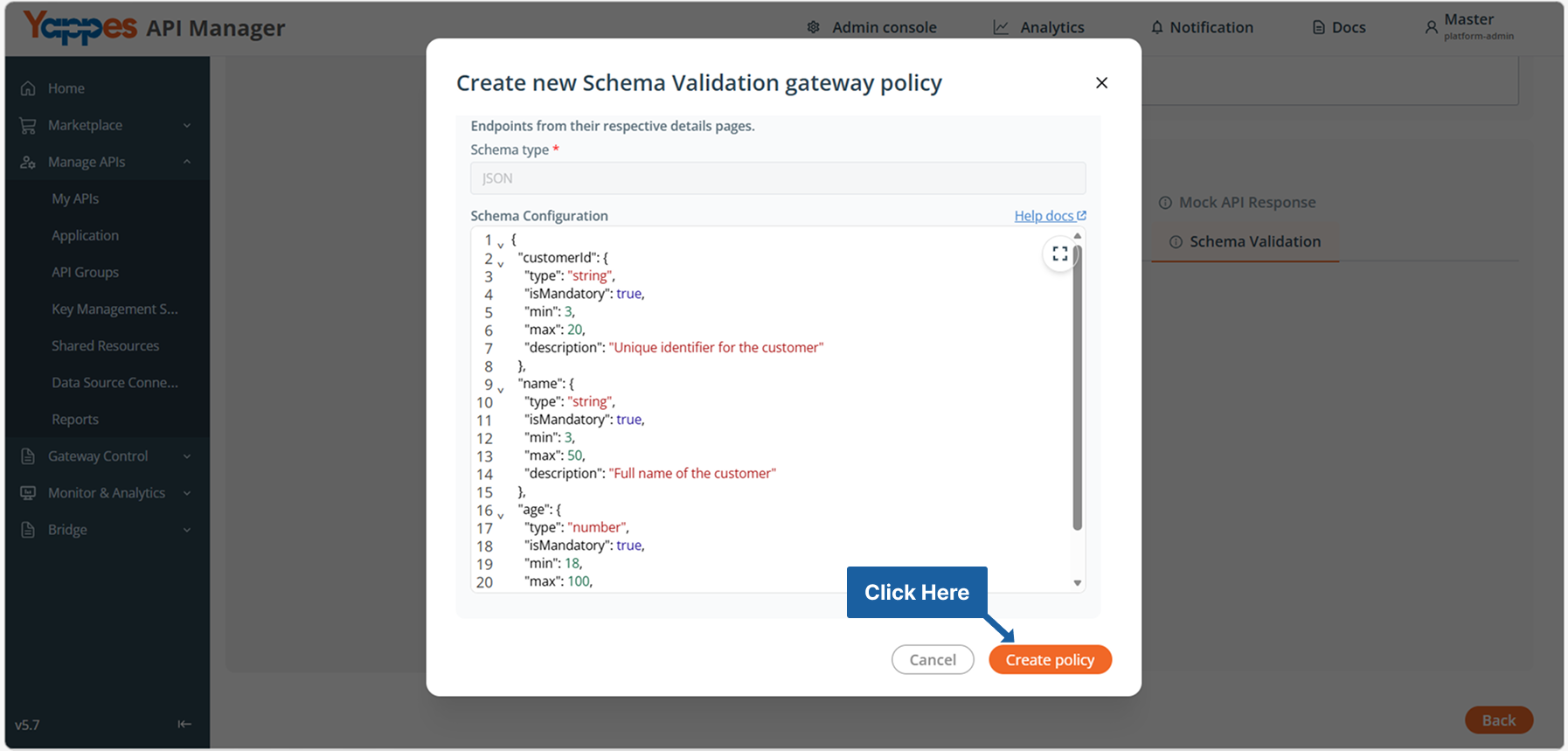

Step 7: Create the Policy¶

Review the schema configuration.
Click Create Policy.

Success

The Schema Validation policy is successfully created.

Method 2: Creating Schema Validation from Gateway Policy Page¶

Step 1: Navigate to Gateway Policies¶

Locate Gateway Control → Gateway Policies in the main navigation menu.
The policies management interface will display.

Step 2: Initialize New Policy Creation¶

Click the + Create Policy button.
The policy creation modal will open.

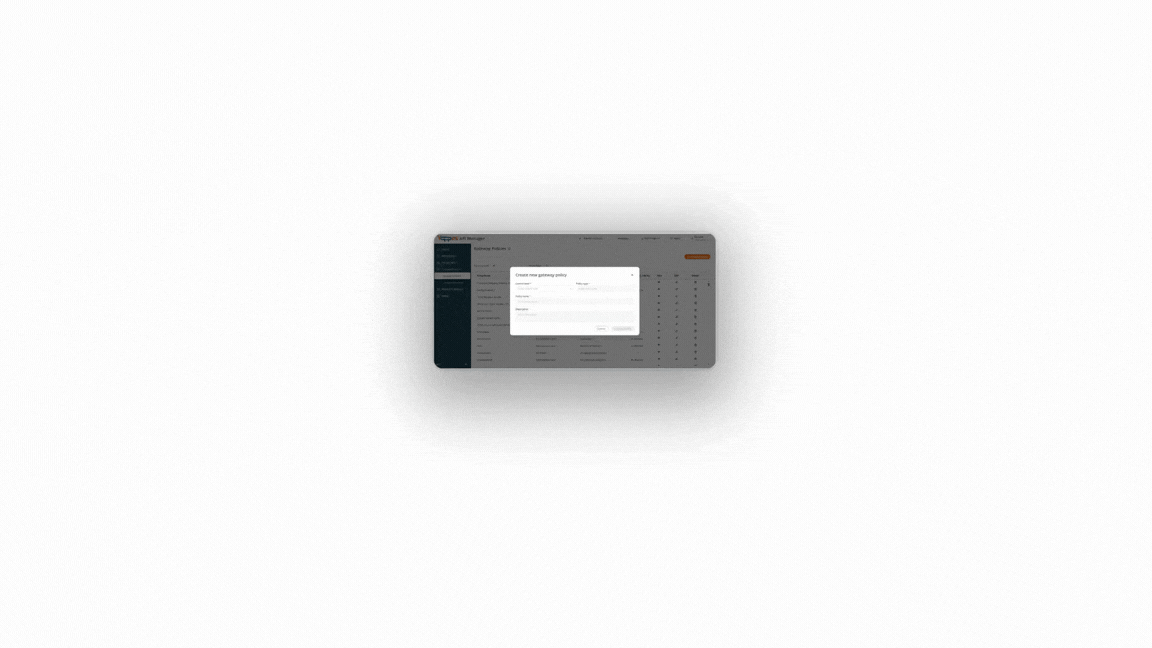

Step 3: Configure Policy Settings¶

Set the Control Level to API Level.
In the Policy Type dropdown, select Schema Validation.
These settings determine the policy scope and functionality.

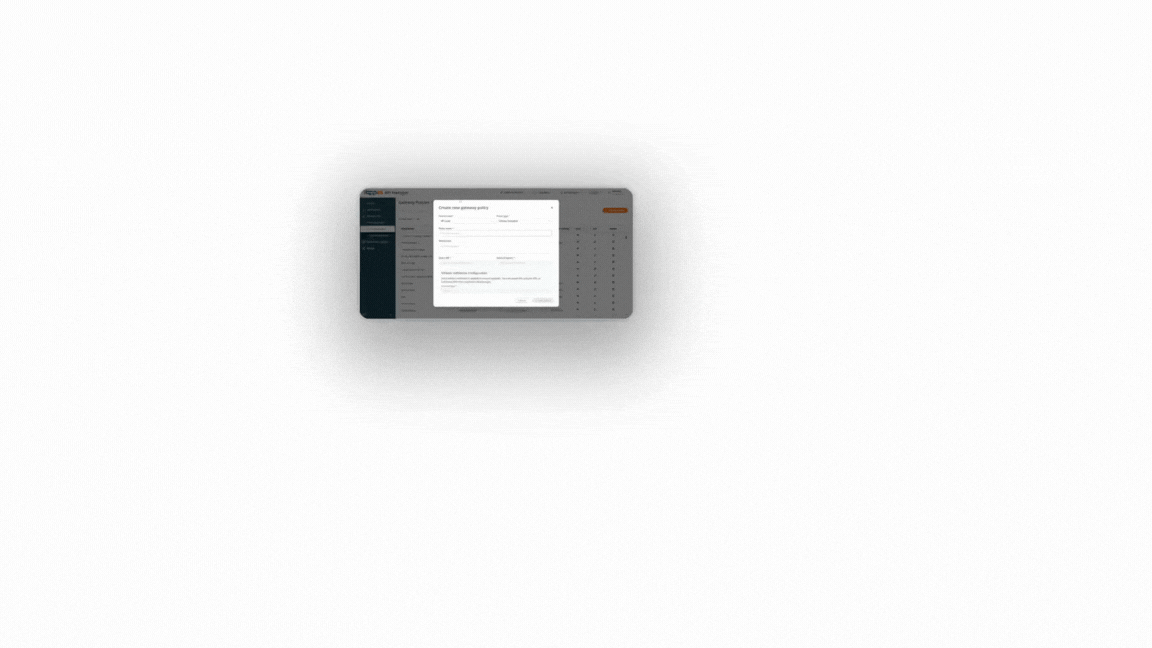

Step 4: Define Policy Details¶

Enter a descriptive name in the Policy Name field (e.g., Customer_Request_Schema_Validation).
Add a detailed description in the Enter description field to document the policy purpose.

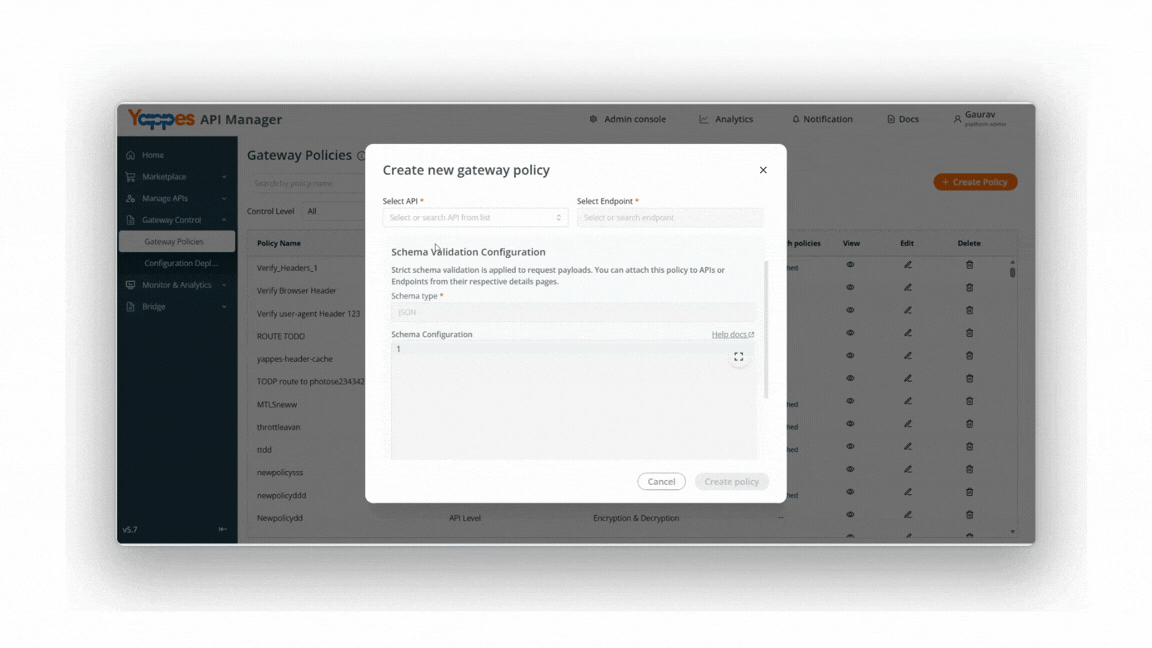

Step 5: Select Target API¶

From the available APIs list, select the API & Endpoint to attach the policy.

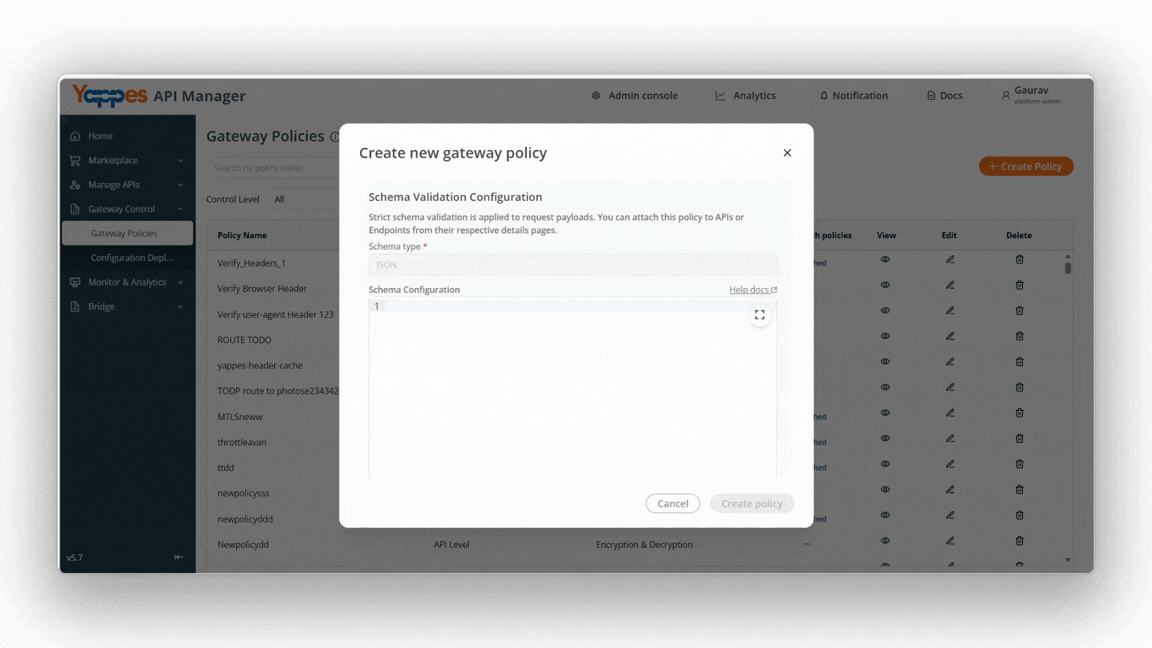

Step 6: Configure Schema Definition¶

The Schema Type field is disabled by default and set to JSON.
Define the schema content directly in the editor.
Click Save to store the policy configuration.

Refer to the Schema Ruleset Configuration section for supported rule types and examples.

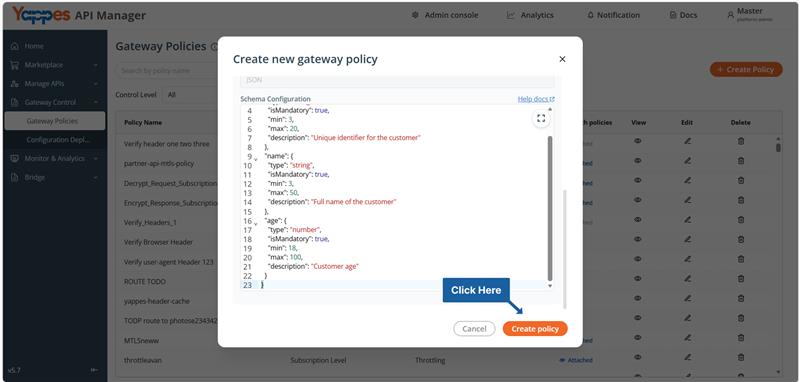

Step 7: Create the Policy¶

Review the schema configuration.
Click Create Policy.

Success

The Schema Validation policy is successfully created.

Understanding the Interface¶

The Schema Validation interface consists of the following components:

Component	Description
`Policy Name`	Identifies the Schema Validation policy.
`Description`	Explains the validation purpose and policy intent.
`Schema Editor`	Area where the validation ruleset is defined using supported rule types.
`Control Level`	Defines the enforcement scope (e.g., API Level).
`Gateway Policies`	Section where validation policies are managed and applied to APIs.

Configuration and Settings¶

This section explains the required configuration fields when creating a Schema Validation policy.

Required Configuration Fields¶

Field	Requirement	Description
`Policy Name`	Mandatory	Must be unique within the gateway. Should clearly identify the API and payload purpose.
`Description`	Mandatory	Should describe what the schema validates and its intended enforcement scope.
`Control Level`	Mandatory	Must be set to API Level. Defines the enforcement scope.
`API Selection`	Mandatory	Required to select the target API where validation will be enforced.
`Endpoint Selection`	Mandatory	Required to select the specific endpoint for which the request payload will be validated.
`Schema Definition`	Mandatory	Accepts JSON ruleset format only. Must follow the supported ruleset structure and be syntactically valid.

Info

Schema Validation is applicable only to endpoints that accept request payloads (e.g., POST, PUT, PATCH).

GET endpoints do not support Schema Validation, as they do not contain a request body.

Schema Definition Behavior¶

Schema Type is disabled by default and set to JSON.
The schema must follow the structure defined in the Schema Ruleset Configuration section.
If the incoming request payload is in XML format, the configured JSON ruleset is internally converted for XML validation by the gateway.

Key Configuration Requirements¶

Field Validation Rules¶

Field names are case-sensitive.
Required fields must be explicitly declared using "isMandatory": true.
Data types must strictly match the defined rule type (string, number, boolean, object, array).
Missing required fields cause validation failure.
Fields not defined in the ruleset are treated as invalid and result in validation failure.

Payload Handling Rules¶

The entire request payload is validated against the configured schema.
Partial validation is not supported.
Empty payloads will fail validation if mandatory fields are defined in the schema.

Best Practices for Configuration¶

Follow these best practices when implementing Schema Validation:

Best Practice	Benefit
Start with minimal required fields	Reduces false rejections and allows gradual enforcement.
Avoid frequent schema changes	Prevents unexpected client breakage.
Version APIs when schemas change	Maintains backward compatibility for existing consumers.
Test in non-production environments first	Prevents production outages and integration failures.
Notify API consumers before schema updates	Improves integration stability and reduces disruption.

What Happens If Validation Fails¶

If schema validation fails:

The request is blocked at the API Gateway.
The backend service is not invoked.
The client receives a schema validation error response.
The failure is logged for monitoring and audit purposes.

Example Requests¶

Valid Request¶

{
  "customerId": "12345",
  "name": "John Doe",
  "age": 30
}

Why it passes:

All required fields are present.
Data types match the defined schema.

Invalid Request¶

{
  "customerId": 12345,
  "name": "John Doe"
}

Why it fails:

Incorrect data type for customerId.
Missing required field age.

Policy Evaluation Order¶

Schema Validation is executed during request processing at the gateway level:

The request reaches the API Gateway.
The Schema Validation policy executes.
If validation fails, the request is blocked immediately.
If validation succeeds, the request is forwarded to the backend service.

Info

Schema Validation short-circuits execution upon failure. No further processing or backend invocation occurs once validation fails.

Verification and Testing¶

After configuring the Schema Validation policy, verify its behavior using the following steps:

Send a valid request and confirm the API responds successfully.
Send an invalid request and confirm the request is rejected at the gateway.
Review gateway logs to verify validation failure details.
Confirm that the backend service receives only valid payloads.

Troubleshooting¶

If you encounter issues while using Schema Validation, refer to the table below:

Issue	Possible Cause	Resolution
Requests blocked unexpectedly	Schema is too strict or overly restrictive	Review optional fields and relax constraints where appropriate
Validation errors returned	Payload does not match the defined schema	Correct the client request to match the configured ruleset
Policy not applied	Incorrect control level selected	Ensure `Control Level` is set to API Level

Impact of Policy Changes¶

Updating schemas may break existing client integrations.
Tightening validation rules may cause previously accepted requests to fail.
Relaxing required fields may allow unintended data to pass validation.
Always test schema updates in non-production environments before deploying to production.

❓ Frequently Asked Questions¶

Does Schema Validation affect performance?
The performance impact is minimal and occurs at the gateway level before backend routing.

Can the same schema be reused across APIs?
Yes. The same Schema Validation configuration can be attached to multiple APIs or endpoints.

Is XML supported?
Yes. XML request payloads are supported.
Schema Validation currently supports JSON ruleset configuration only.
If an incoming request payload is in XML format, the configured JSON ruleset is internally converted by the gateway for XML validation.
Direct upload of XML Schema (XSD) files is not supported.

Pro Tip

Schema Validation in Yappes enforces secure, standards-based JSON and XML request validation at the API Gateway to protect backend services and ensure contract compliance.
